Content

• Package Contents
• Introduction
• Specifications of OSOYOO MKS Robin Nano V3.1 Mainboard
• Pinout and size of OSOYOO MKS Robin Nano V3.1 Mainboard
• Wiring OSOYOO MKS Robin Nano V3.1 Mainboard
• Flashing Marlin firmware
• Using with TS35 Touch Screen
  • Introduction of TS35 Touch Screen
  • Use TS35 Touch Screen  with MKS Robin Nano V3.1
• Safety & Best Practices
• Reference

Package Contents

• 1x MKS Robin Nano V3.1 main board

• 1x MKS TS35 3.5″ color touch screen

• 1x Two flat ribbon cables (for EXP1 and EXP2)

• Some jumpers caps

Important: Make sure all items are included and undamaged before starting.

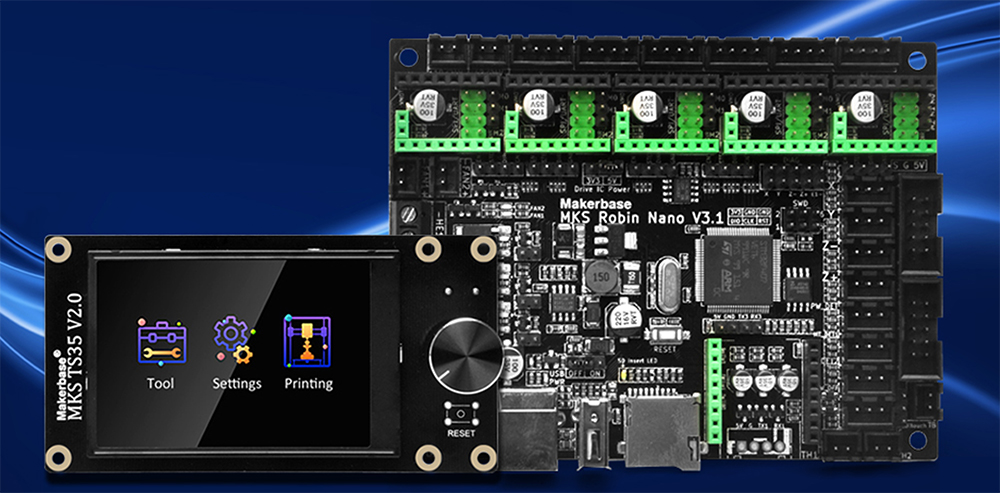

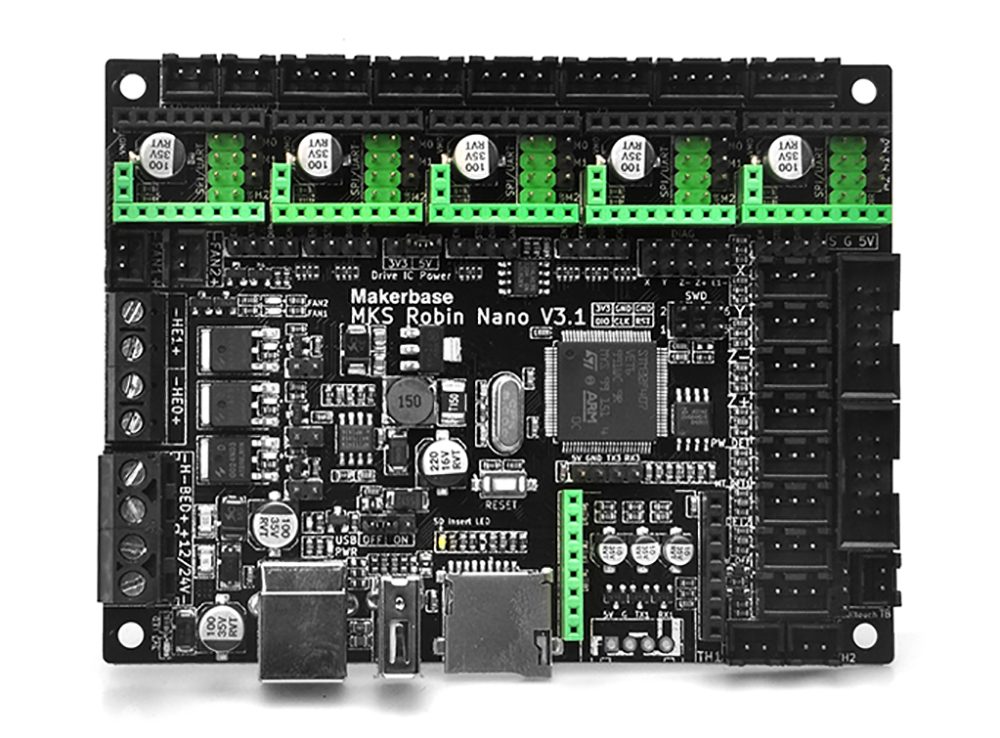

Introduction of OSOYOO MKS Robin Nano V3.1 Mainboard

The MKS Robin Nano V3.1 is a 32-bit STM32F407-based 3D printer controller board with support for up to five stepper driver sockets (X, Y, Z, E0, E1) and dual-Z configurations. It works with popular firmware such as Marlin, Klipper, and Reprap, and supports MKS touchscreens like TS35. Its flexible I/O interfaces, stable power design, and rich expandability make it suitable for DIY and modified printers requiring reliable motion control and advanced features.

Specifications of OSOYOO MKS Robin Nano V3.1 Mainboard

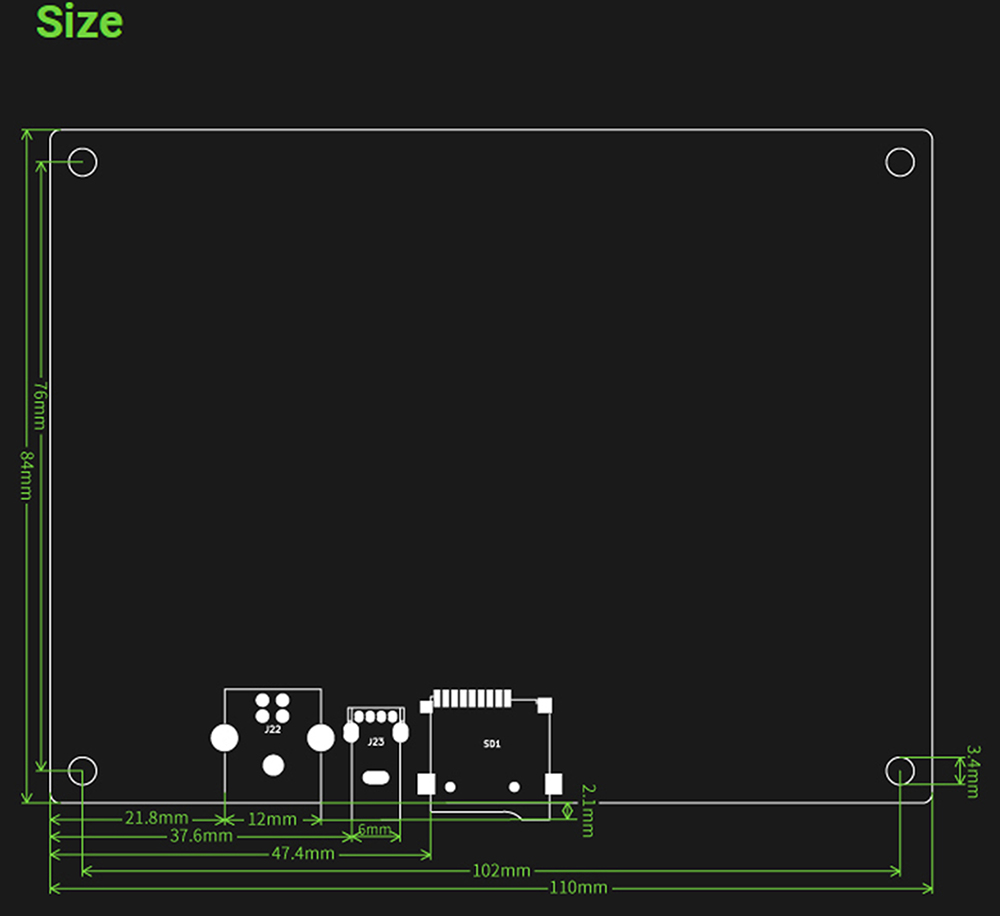

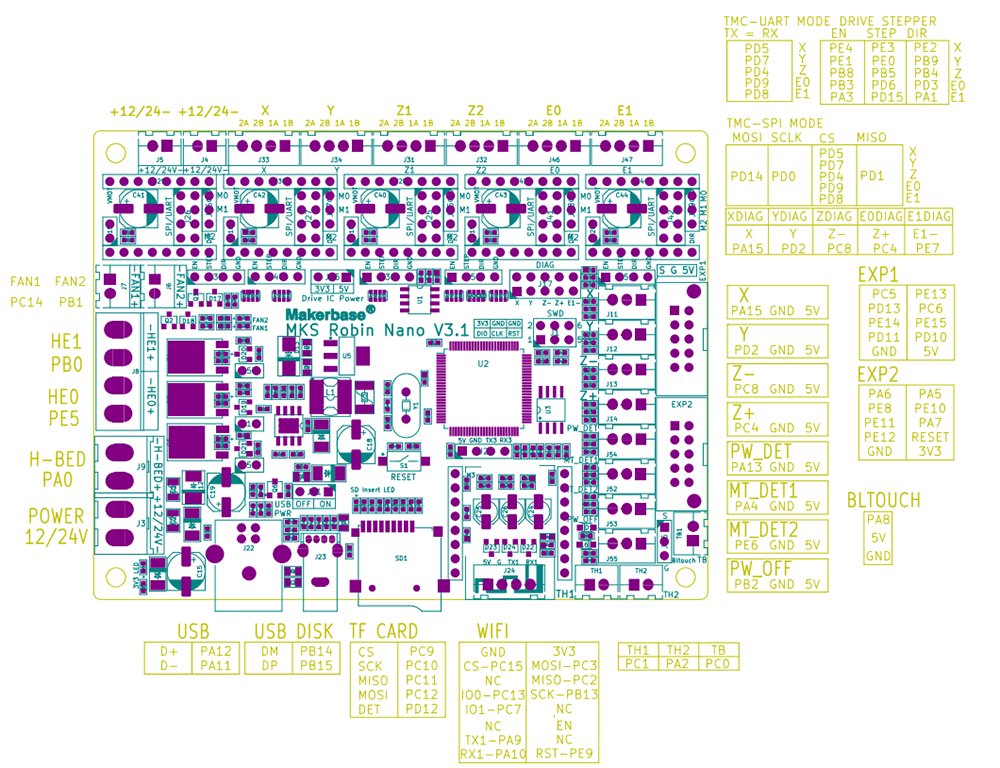

Pinout and size of OSOYOO MKS Robin Nano V3.1 Mainboard

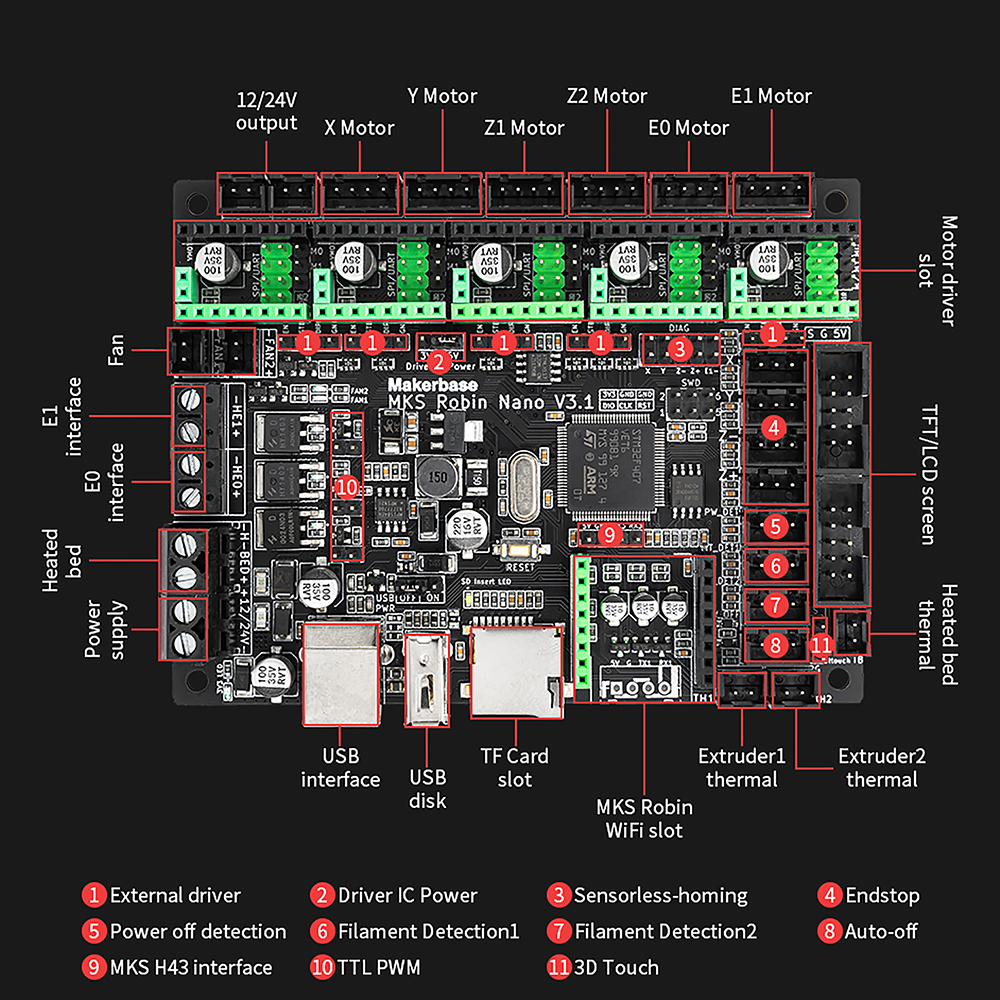

Wiring OSOYOO MKS Robin Nano V3.1 Mainboard

Before You Begin
Power requirements: Use a DC 12–24 V power supply Always ensure the positive (+) and negative (–) polarity is correct before powering up to avoid board damage.

OSOYOO MKS Robin Nano V3.1 supports:

• Up to 6 stepper motor outputs(e.g. X, Y, Z1, Z2, E0, E1)
• Heated bed interface
• Two extruder heater outputs
• Three thermistor (NTC100K) sensor inputs
• Two PWM fans

Flashing Marlin firmware

Step 1. Install Visual Studio Code

• Before starting to edit Marlin, we recommend that you install a good code editor – Visual Studio Code. You can even compile Marlin directly from it.
• Visual Studio Code can be freely downloaded, after you have edited Marlin and the necessary parameters,you can compile it and upload your new firmware to the printer.
• How to install Visual Studio Code and PlatformIO,edit and compile marlin,you can find from marlinfw.org

Step 2. Download Marlin

After install VScode, you should download the Marlin source code. There are three ways to get Marlin source code.

• You can download the version of MKS from here Mks-Robin-Nano-Marlin2.0-Firmware
• You can download official marlin from here Marlin 2.x.x, we usually download the firmware LATEST RELEASE, just below the word DOWNLOAD. There, click on the 2.0.x.zip link.

Step 3. Configure and compile

• platformio.ini：
default_envs = mks_robin_nano_v3_usb_flash_drive_msc

• Configuration.h:
#define MOTHERBOARD BOARD_MKS_ROBIN_NANO_V3
#define SERIAL_PORT -1 // for communication with USB
#define TFT_LVGL_UI // for MKS TS35 display
#define TOUCH_SCREEN // for MKS TS35 touch


• Configuation_adv.h:
After 2021.6.7, you can use the multi-volume function.
Use the TF card and USB disk together:
#define USB_FLASH_DRIVE_SUPPORT
Only use TF card:
// #define USB_FLASH_DRIVE_SUPPORT


Step 4. Update marlin firmware

• After compile marlin firmware, copy “Robin_nano_v3.bin” file and assets folder to root directory of TF card or usb-disk[from: Marlin -> .pio – > build -> mks_robin_nano_v3_usb_flash_drive_msc]
• Reset or repower on update firmware

Using with TS35 Touch Screen

Introduction of TS35 Touch Screen

Your screen shows the main menu: Print, Settings, Tools etc.

Use the touchscreen icons (or rotary encoder if present) to navigate menus.

The touchscreen supports pause, resume, preheat, move axis, and more.

If filament runout sensors are configured in firmware, the screen will pause prints accordingly.

Use TS35 Touch Screen  with MKS Robin Nano V3.1

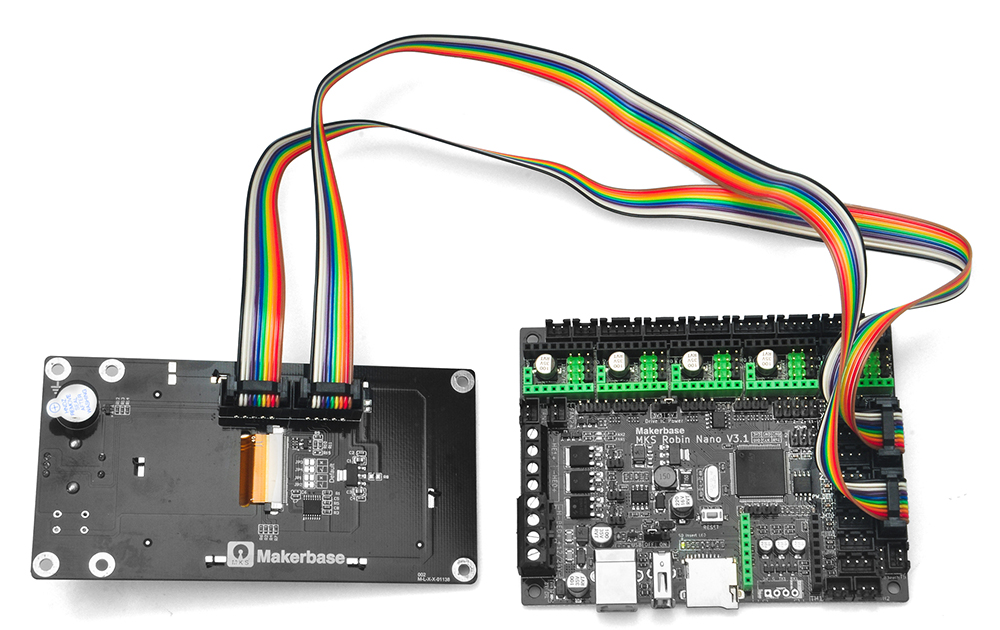

The TS35 connects to the mainboard via EXP1 and EXP2 connectors:

1. Turn off the power.

2. Connect EXP1 on the TS35 to EXP1 on the Robin Nano V3.1 board using one flat cable.

3. Connect EXP2 on the TS35 to EXP2 on the board with the second ribbon cable.

4. Secure the screen in place (e.g., printer frame or enclosure).

5. Power on your printer — the screen should initialize with the user interface.

Safety & Best Practices

Always power down before connecting/disconnecting cables.
Double-check polarity before applying power.
Use recommended firmware only, and keep backups of config files.

Reference

RepRap Firmware for MKS Boards: https://github.com/makerbase-mks/RepRapFirmware-for-MKS-Boards

Klipper for MKS boards: https://github.com/makerbase-mks/Klipper-for-MKS-Boards/tree/main/MKS%20Robin%20Nano%20V3.x
